Digital Mixer

M-864D Digital Stereo Mixer

M-864D Digital Stereo Mixer

M-864D

The M-864D is a 4U rack mountable Digital stereo mixer having 22 input channels including 8 monaural input channels and 7 stereo input channels, 6 output channels including 4 monaural output channels and 1 stereo recording output channel, and 4 bus channels. It is equipped with digital signal processing functions such as Automatic resonance control function (ARC(*1)), Feedback suppressor function (FBS), Automatic stereo input mute function (AUTO MUTE or Ducker), and Equalizer. Advanced acoustic compensation can be automatically performed without using an acoustic measuring instrument. Furnished with various function setting buttons and 14 analog volume faders, the M-864D can be operated without need for use of a PC. However, it can also be operated by connecting the PC or optional Remote control panel. It can be mounted in an EIA component rack (4U size). (*1) Automatic Resonance Control function automatically creates the filter curve to improve sound clarity by measuring the acoustic characteristics inherent in architectural space.

M-633D Digital Stereo Mixer

M-633D Digital Stereo Mixer

M-633D CE

The M-633D is a stereo mixer equipped with 12 input channels (6 monaural inputs and 3 stereo inputs) and 6 output channels (2 monaural outputs, 1 stereo output, and 1 stereo recording output). It has 2 monaural channel and 1 stereo channel bus lines, allowing each input signal to be assigned to each bus line individually. It features digital signal processing functions such as Automatic Resonance Control function (ARC), Feedback Suppressor function (FBS), Automatic Clipguard function (ACG), and Automatic Mute function (AUTO MUTE). It performs advanced acoustic compensation by means of automatic processing without the use of an acoustic measuring instrument. It can be mounted in an EIA component rack (1U size).

D-2008SP Digital Mixing Processor Unit

D-2008SP Digital Mixing Processor Unit

D-2008SP CE

The D-2008SP Digital Mixing Processor Unit is designed to have up to 32 audio inputs and outputs in total, and to be mounted in an EIA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input/output and control ports can accept optional plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 control modules. Using the following optional modules enables the unit to perform their functions: Two D-983s for providing a maximum of 48 contact inputs and 32 contact outputs, D-984VC for VCA control, and D-2000CB for audio data transfer between multiple D-2008SP units. Each function is set by the dedicated setting software on a PC. Setting contents can be stored in the unit's internal memory as preset memory, which can be recalled by the D-2008SP without using a PC. The D-2012C, when connected, remotely controls the D-2008SP's basic operations such as volume control.

D-2012C Remote Console Unit (CE Version)

D-2012C Remote Console Unit (CE Version)

D-2012C CE

The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be recalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connected to a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.

D-2012AS Console Case

D-2012AS Console Case

D-2012AS

D-2012AS Console Case is designed to make the D-2012C Remote Console Unit desk-top type. It includes a set of mounting hardware such as an armrest and side panels.

D-2000AD1 Mic/Line Input Module

D-2000AD1 Mic/Line Input Module

D-2000AD1

The D-2000AD1 is a 4-channel Microphone/Line Input Module designed for use with the D-2008SP Digital Mixing Processor Unit. It employs XLR type connectors.

D-2000DA1 Line Output Module

D-2000DA1 Line Output Module

D-2000DA1

The D-2000DA1 Line Output Module is designed for use with the D-2008SP Digital Mixing Processor Unit and features high quality sound. The output level of each output terminal can be independently set to either +4 dB or -10 dB and its output mode independently set to either balanced or unbalanced type by the built-in DIP switch. It employs XLR type connectors.

D-2000CB CobraNet Interface Module

D-2000CB CobraNet Interface Module

D-2000CB

The D-2000CB Cobranet Interface Module is designed for use with the D-2008SP Digital Mixing Processor Unit. When mounted to the D-2008SP, it allows audio transmission between this D-2008SP and other one. Each function is set by the dedicated setting software on a PC.

D-901 Digital Mixer

D-901 Digital Mixer

D-901 CE

The D-901 is a 19-type rack-mounted (3U high) digital mixer configured with 12 inputs, 8 buses, and 8 outputs. It features signal processing functions necessary for sound systems such as feedback suppression and auto-mixing. Modular construction permits flexible configuration of inputs and outputs, from 2-IN/4-OUT to 12-IN/8-OUT systems. All functional parameters can be set at the unit. Settings can be stored in the unit's internal memory as "preset memory" and can be recalled using the front panel-mounted operation keys.

D-911 VCA Fader Unit

D-911 VCA Fader Unit

D-911

The D-911 is a dedicated VCA fader unit designed for use with the D-901 Digital Mixer, etc. Connecting the D-911 to the D-984VC, VCA control module permits the volume control of all channels and contact controls.

D-921E Mic/Line Input Module

D-921E Mic/Line Input Module

D-921E

The D-921E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.

D-921F Mic/Line Input Module

D-921F Mic/Line Input Module

D-921F

The D-921F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.

D-922E Mic/Line Input Module

D-922E Mic/Line Input Module

D-922E

The D-922E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors. The D-901's 4-pole DIP switch is used to set the input sensitivity, phantom power supply, and ground lifting.

D-922F Mic/Line Input Module

D-922F Mic/Line Input Module

D-922F

The D-922F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. The D-901's 4-pole DIP switch is used to set the input sensitivity, phantom power supply, and ground lifting.

D-923AE Digital Input Module

D-923AE Digital Input Module

D-923AE

The D-923AE is a 2-channel line digital input module designed for use with the D-901 Digital Mixer, etc. With the use of this module, digital signals can be input, permitting direct connection of the D-901 Digital Mixer to equipment having a digital output. Owing to the built-in sample rate converter, the module can handle signals of various sampling frequencies.

D-936R Stereo Select Input Module

D-936R Stereo Select Input Module

D-936R

The D-936R is a 4 stereo input module designed for use with the D-901 Digital Mixer, etc. It is equipped with standard RCA pin jacks. The D-936R features two stereo transmission modes: 1)Selection of one of the four stereo inputs for transmission to the D-901. 2)Mixing of all four stereo inputs, transmitting the mixed signal to the D-901 through left/right channel outputs. Mode settings and stereo selection are performed at the main frame such as the D-901.

D-961SP Digital Output Module

D-961SP Digital Output Module

D-961SP

The D-961SP is a Stereo 2-channel line digital output module designed for use with the D-901 Digital Mixer, etc. With the use of this module, digital signals can be output, permitting direct connection of the D-901 Digital Mixer to equipment having a digital input. Each pair of optical output and coaxial output is output in parallel.

D-971E Line Output Module

D-971E Line Output Module

D-971E

The D-971E is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors.

D-971M Line Output Module

D-971M Line Output Module

D-971M

The D-971M is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors.

D-971R Line Output Module

D-971R Line Output Module

D-971R

The D-971R is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with standard RCA pin jacks.

D-972AE Digital Output Module

D-972AE Digital Output Module

D-972AE

The D-972AE is a 4-channel line digital output module designed for use with the D-901 Digital Mixer, etc. With the use of this module, digital signals can be output, permitting direct connection of the D-901 Digital Mixer to equipment having a digital input.

D-981 Remote Control Module

D-981 Remote Control Module

D-981

The D-981 is a remote control module designed for use with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.

D-983 Remote Control Module

D-983 Remote Control Module

D-983

The D-983 is a remote control module designed for used with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.

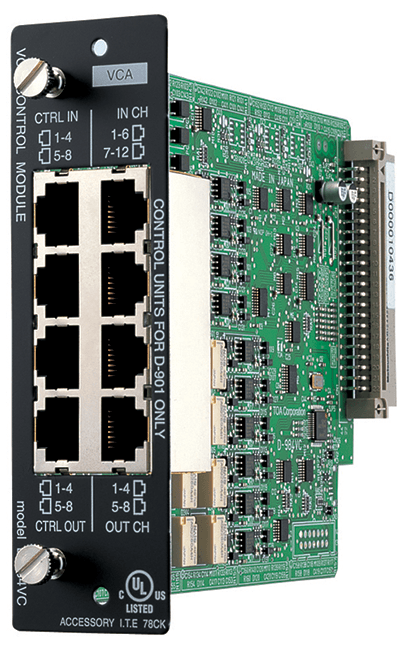

D-984VC VCA Control Module

D-984VC VCA Control Module

D-984VC

The D-984VC is a dedicated VCA control module designed for use with the D-901 Digital Mixer. It expands the D-901 Digital Mixer's functions by 20 VCA control inputs, 8 contact inputs, and 8 contact outputs. By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. By the contact input controls from external equipment, this module permits the preset memory recall, input/output channel gains, stereo input selection, and channel ON/OFF to be controlled. By the contact output controls Tally outputs can also be provided for external control.
